ScummC Tools

Welcome to the ScummC Tools. These tools are made to simplify the creation of Adventure Games with the Scumm Compiler ScummC. At the moment you can download:

CHAR-Editor (Font Editor)
ROOM-Editor (Room Resource Editor)
COST-Editor (Animation Editor - not yet released)

If you are interested in the source code, write me an E-Mail. The tools are written in PureBasic, a platform independent, fast and simple language. It is perfectly suited for GUI applications because native GUI elements on every platform are used (Sorry, but GTK is crap on all non-Linux systems).

IMPORTANT: *.char and *.cost files are standard resource files of ScummC. But *.room files created with room editor can't be used with the current version of ScummC. ScummC needs to be changed a bit to use room resources directly. That will be my next task. I had tried to contact the author of ScummC, without success. If someone wants to support me (my C++ skills are not the best), I do not mind. Thank you!

Here you can find out how it is supposed to work someday: Build your SCUMM Adventure!

CHAR-Editor

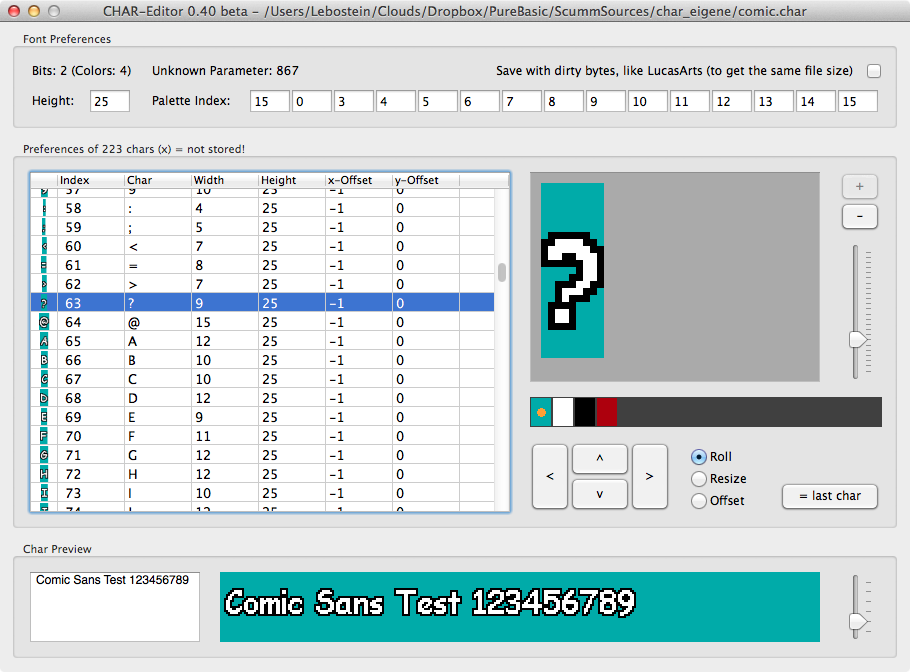

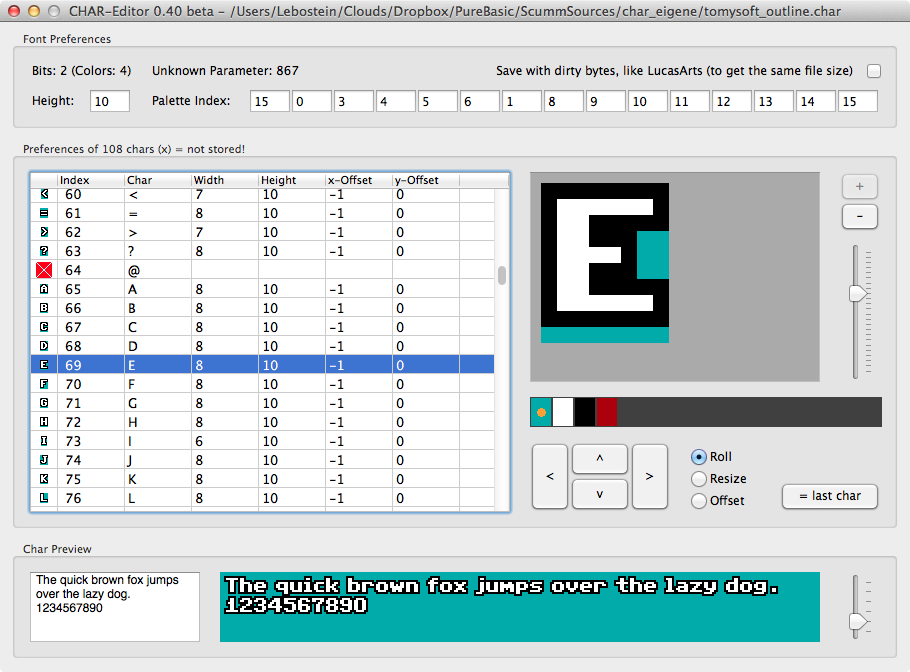

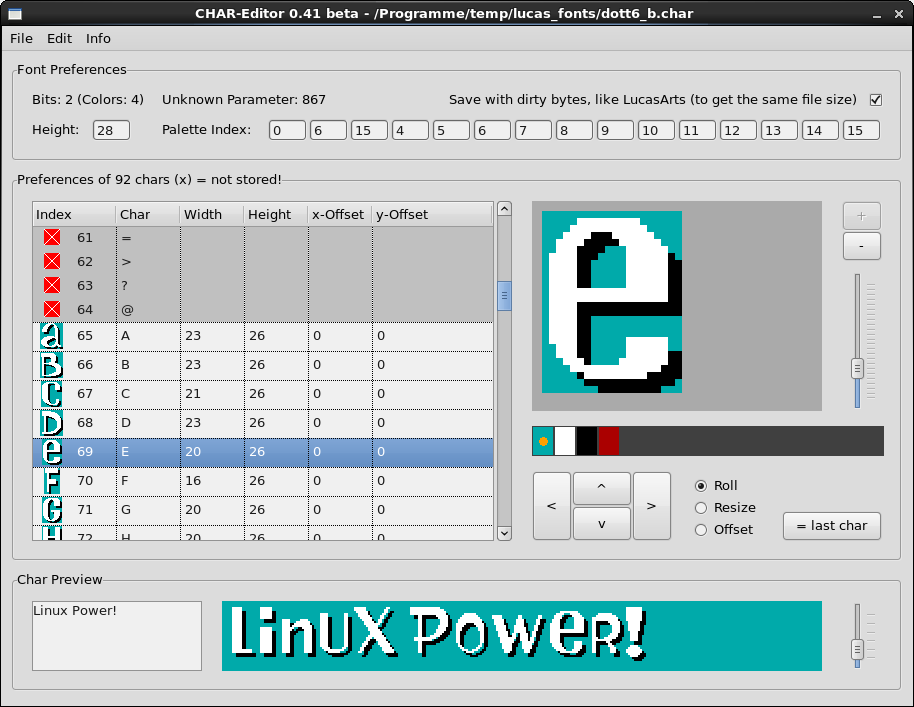

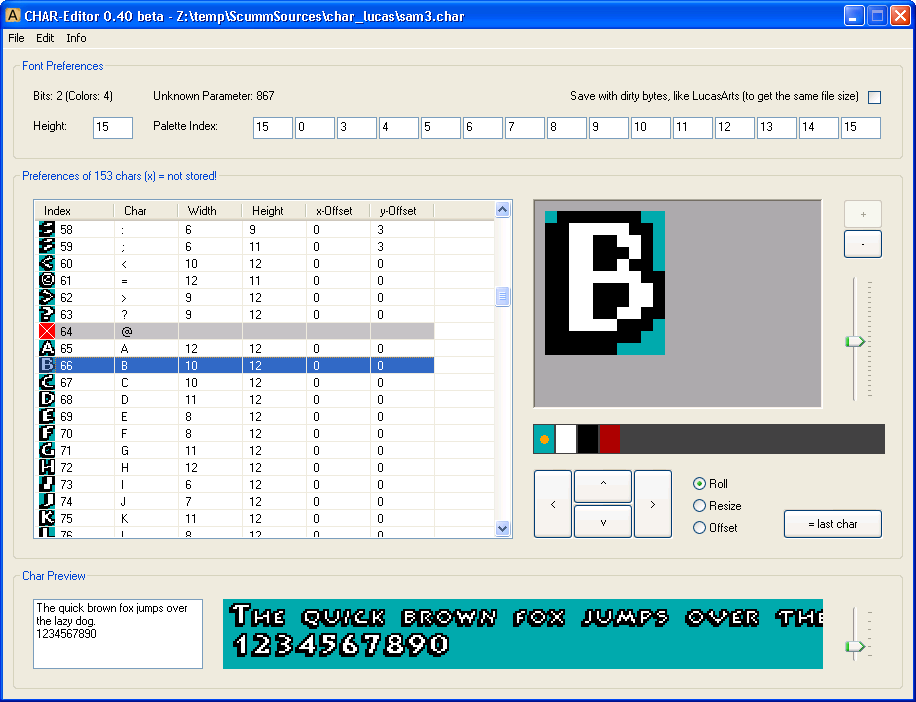

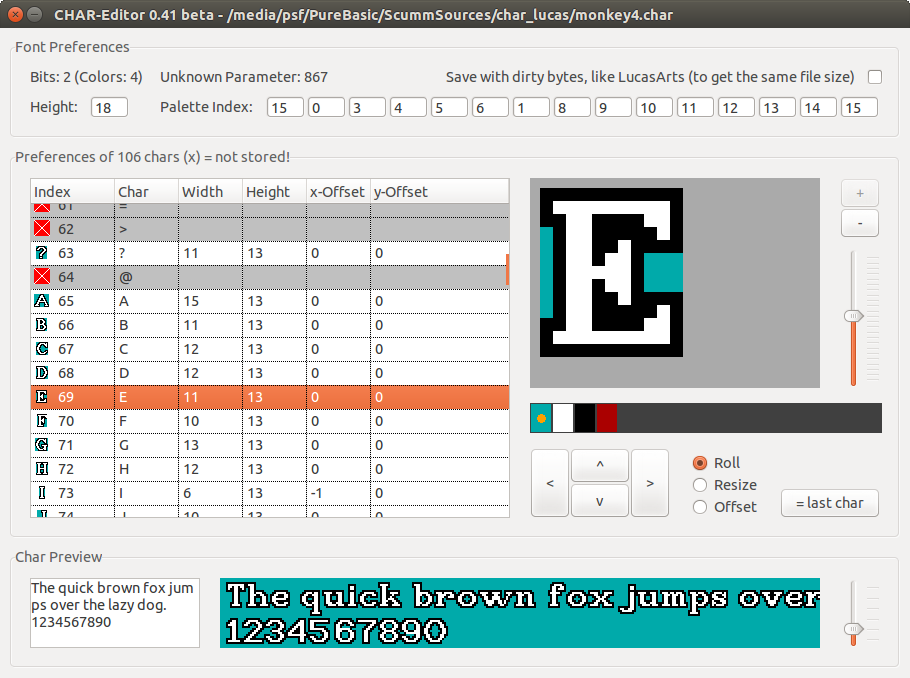

With this editor you can create, import, edit and save fonts in LucasArts format. The used file format (*.char) is identical to the CHAR-blocks inside the original SCUMM resource files. So you can easily export CHAR-blocks from SCUMM resource files and open/edit them with the editor. Or vice versa you can create and save fonts as *.char files and use them directly for building SCUMM resources.

Downloads:

	Download	Size	Screenshots
32-Bit	charedit_v1.00_win32.zip	77 kB	[1]
64-Bit	charedit_v1.00_macos.zip	326 kB	[1] [2]
64-Bit	charedit_v1.00_linux.tar.gz	108 kB	[1] [2]

Attachments:

ROOM-Editor

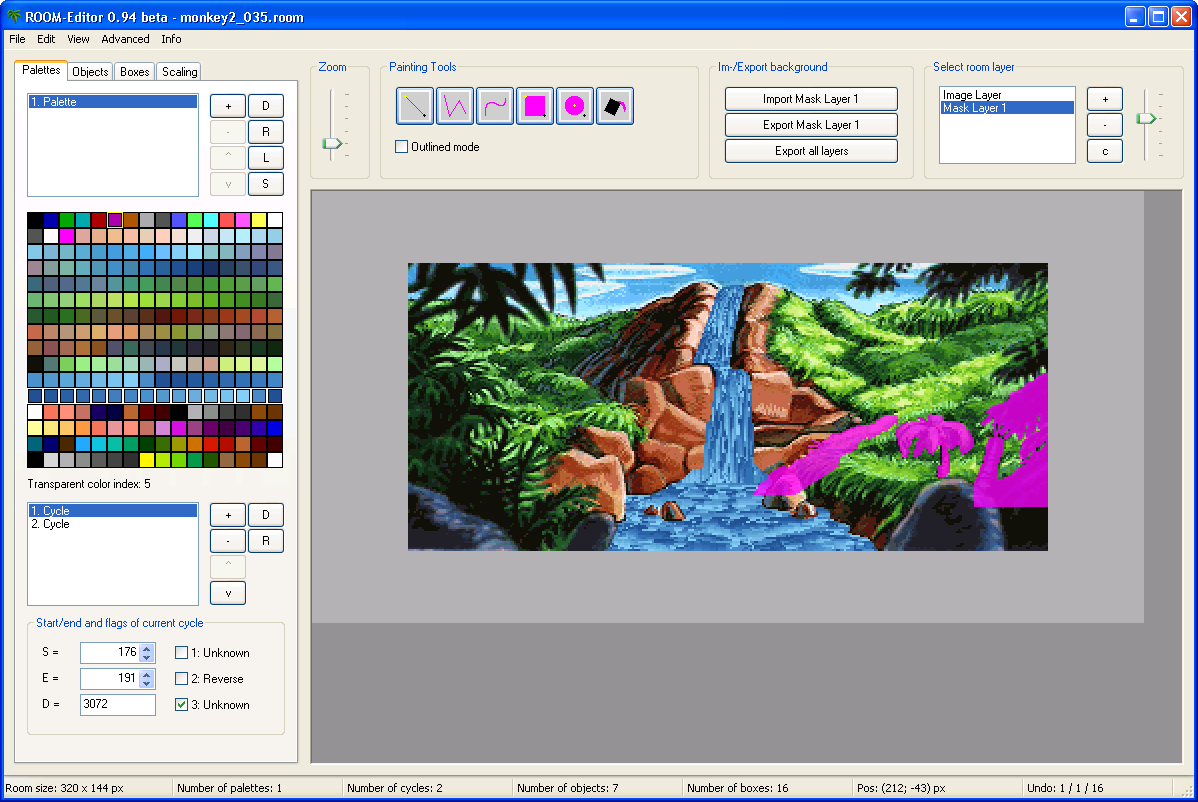

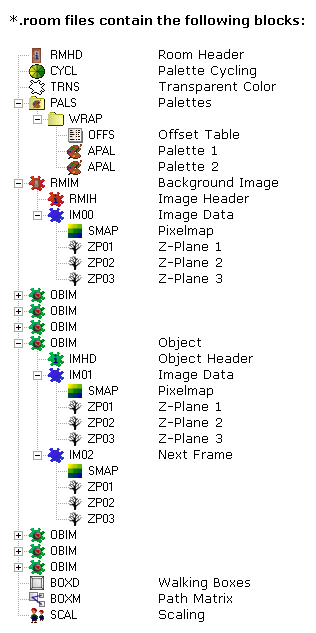

With this editor you can create, import, edit and save all room resources. The used file format (*.room) is identical to a data stream which contains all room resource blocks except of scripts. The editor uses SCUMM 6 format to save rooms. You can fully edit, create and remove all resources in an easy way. So you can create own room with all possible features:

edit, add and remove walk-behind layers
edit, add and remove color tables, you can handle more than one table

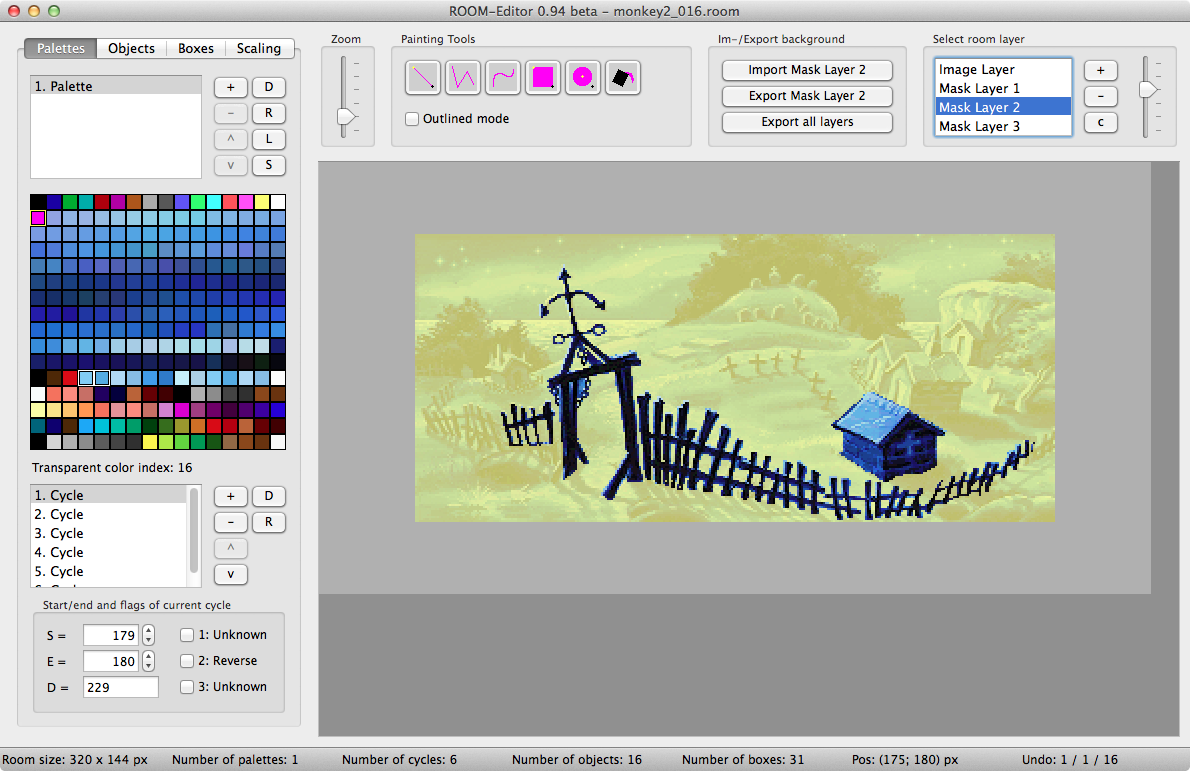

edit, add and remove color cycles (including a live preview of cycling!)

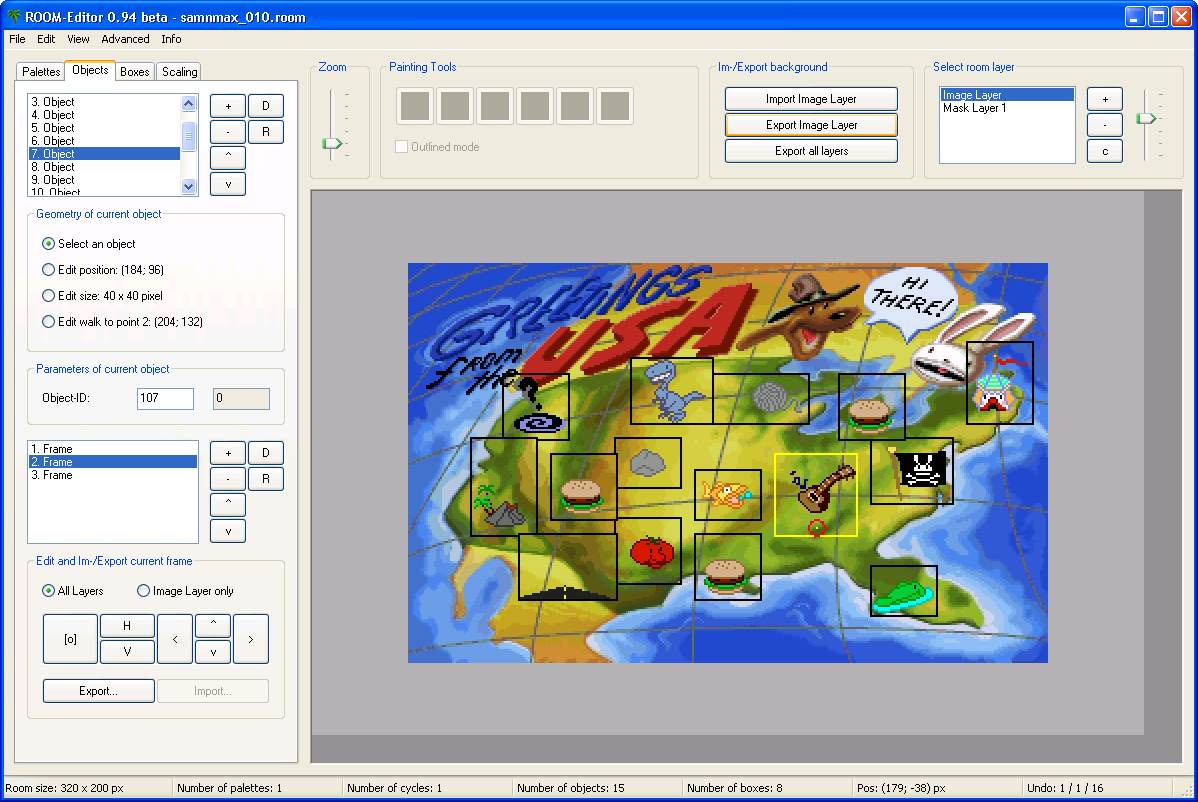

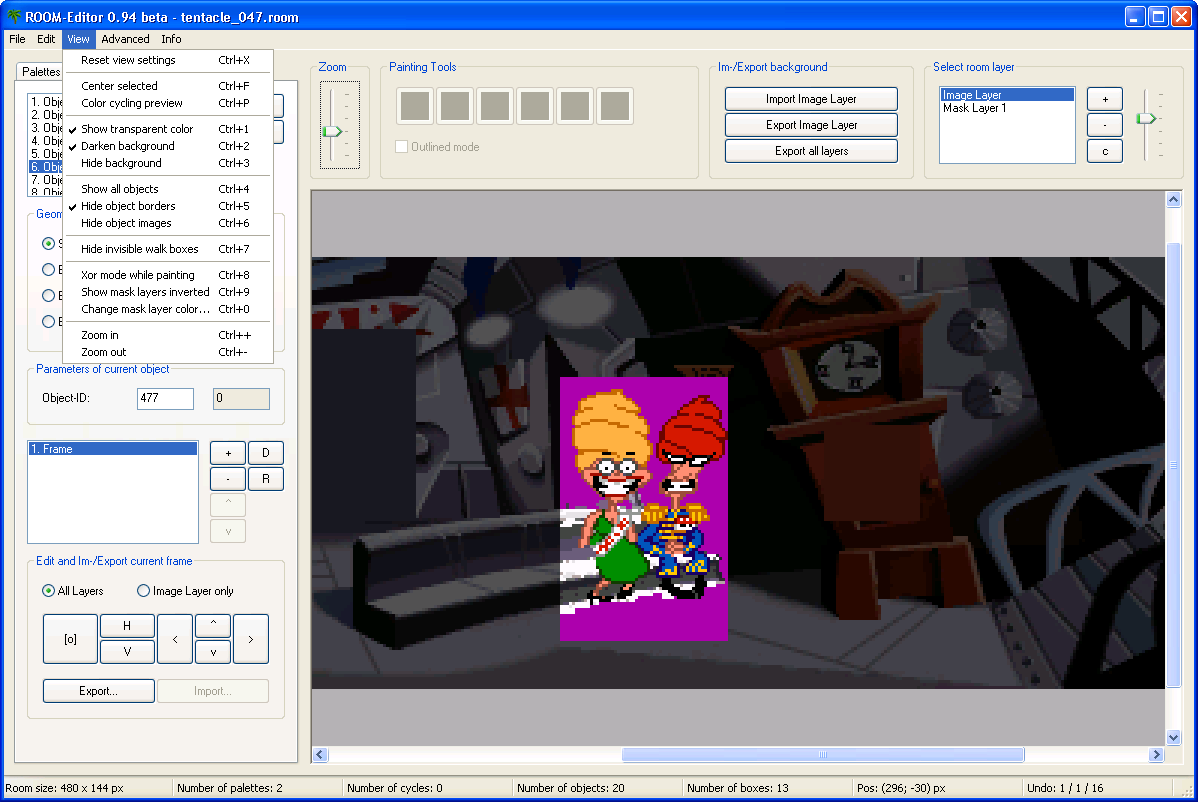

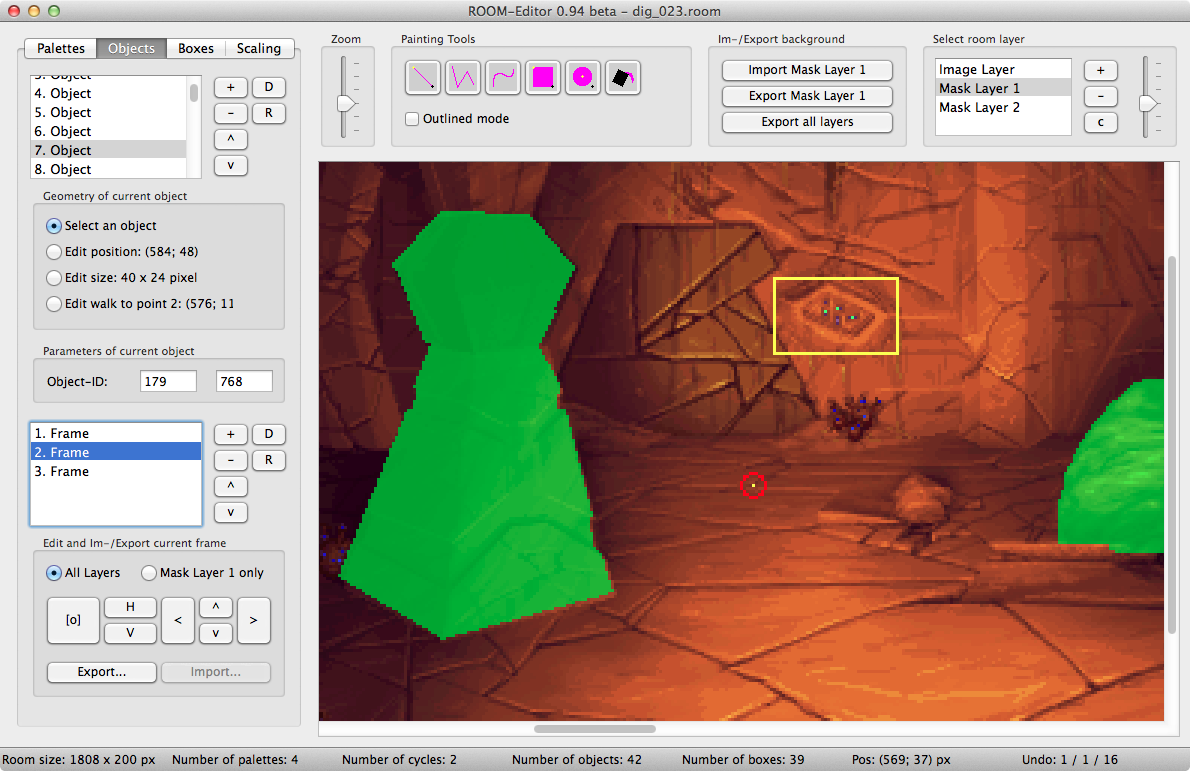

edit, add and remove objects, including single frame ex- and import

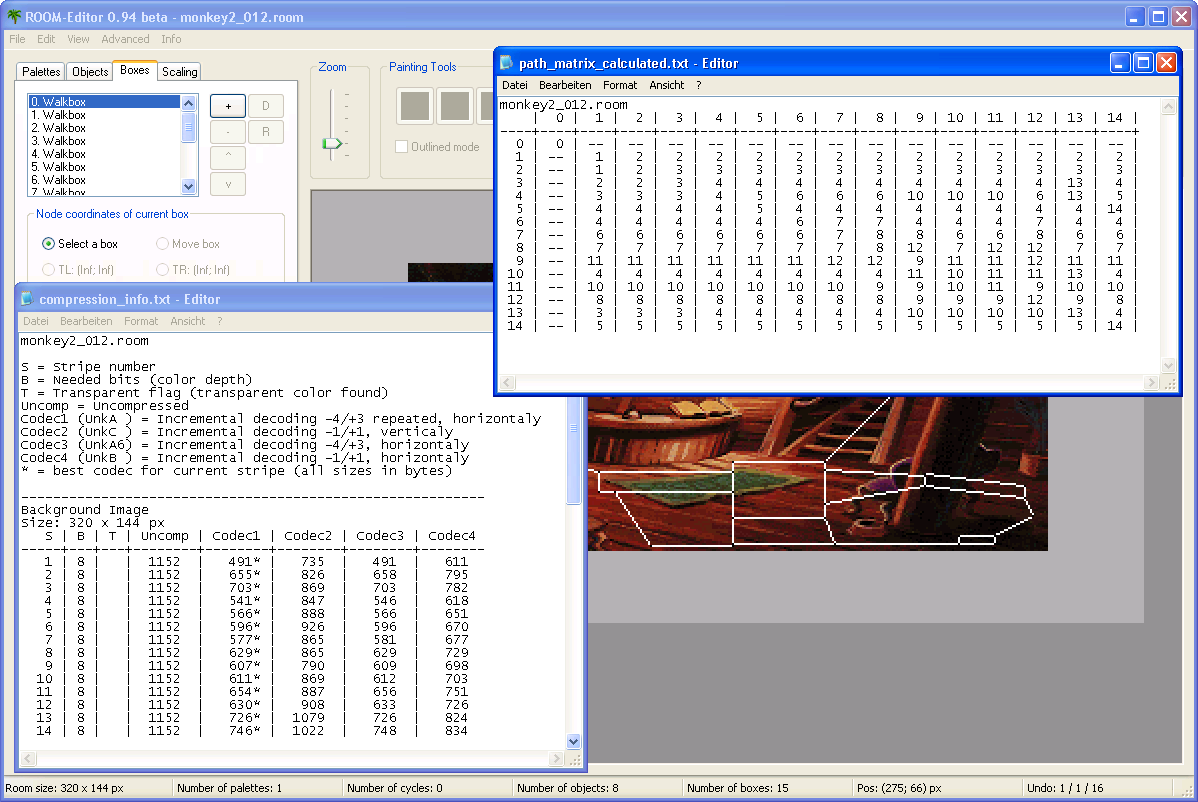

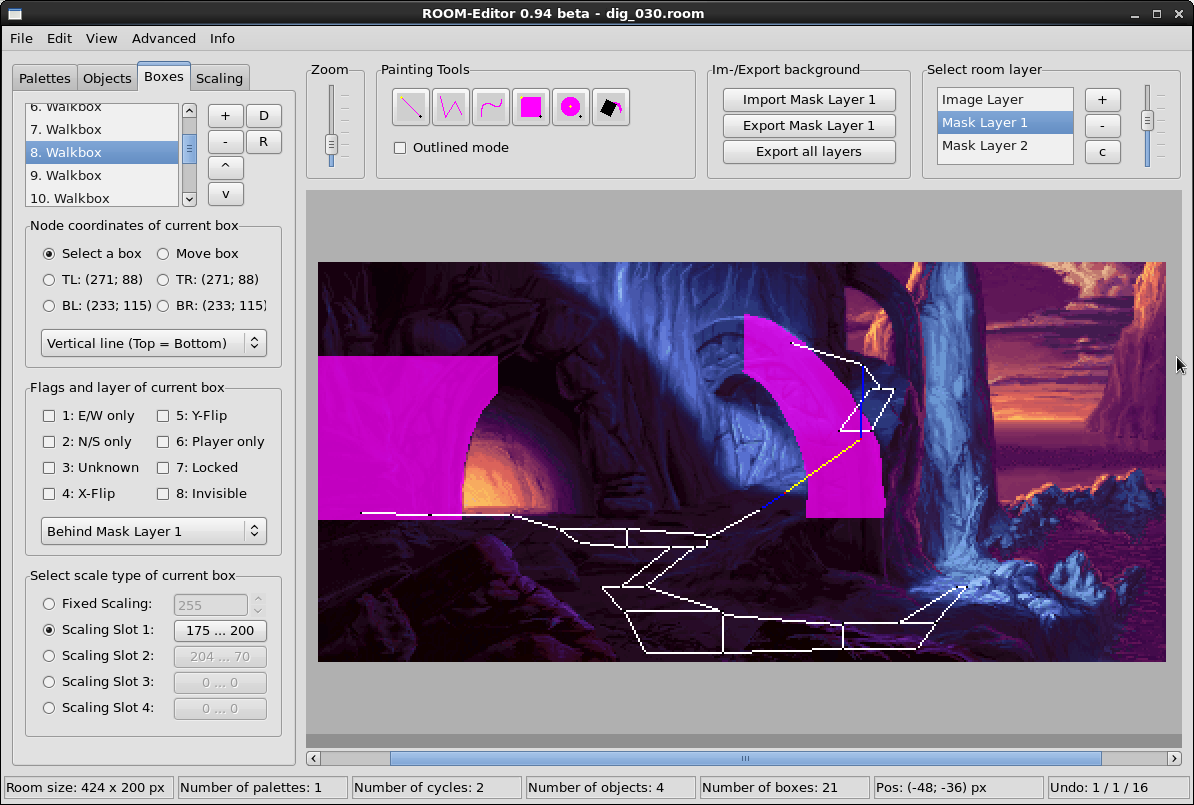

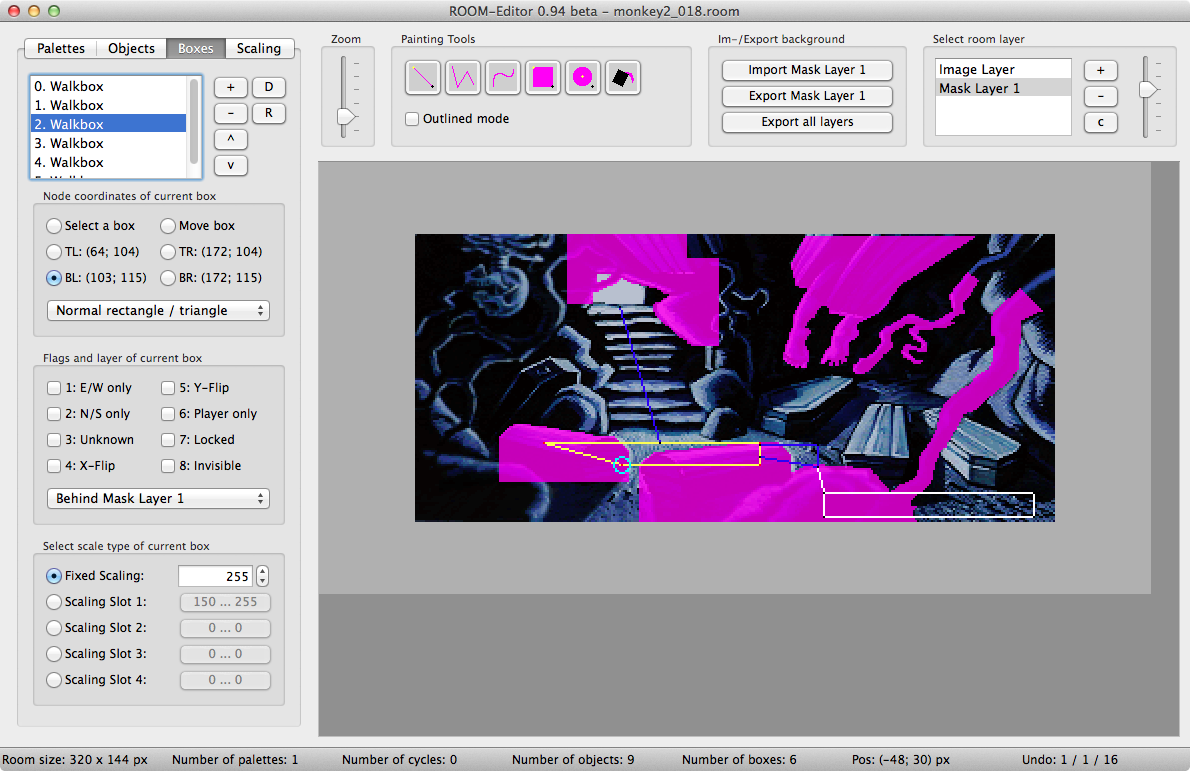

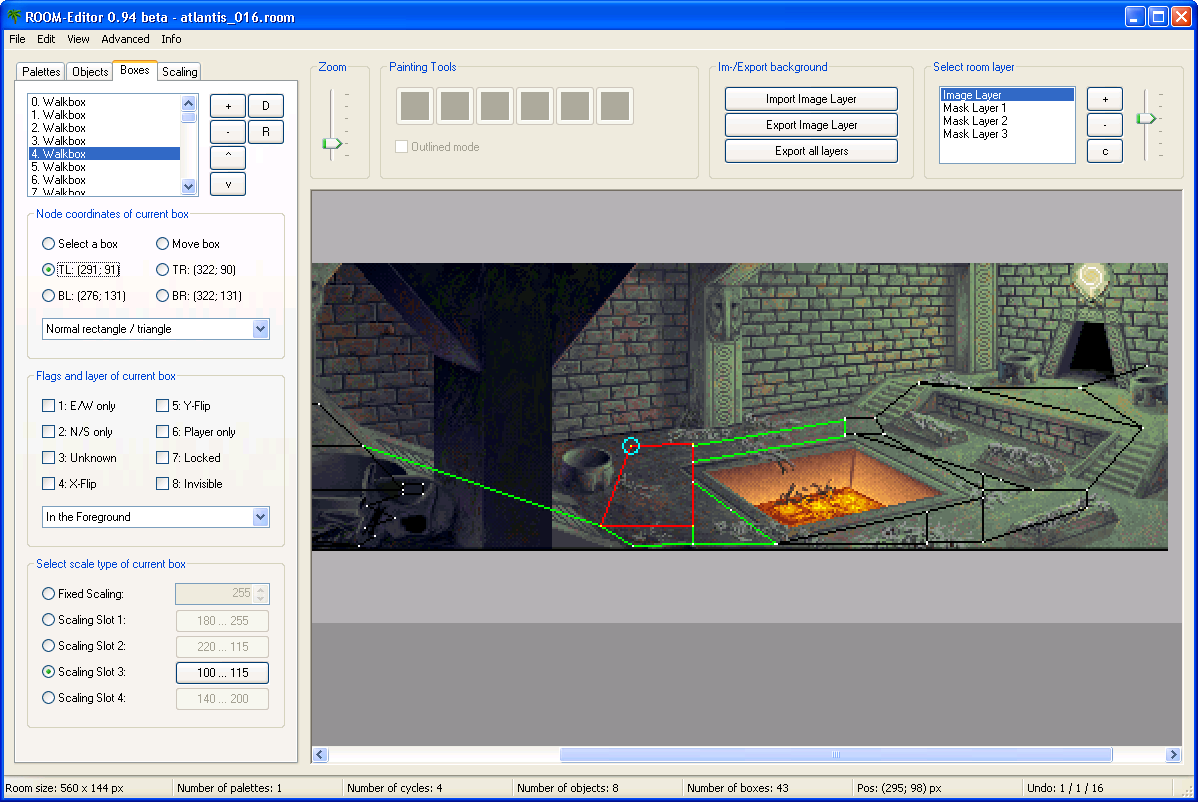

edit, add and remove walk areas, including connection highlighting and path matrix calculation

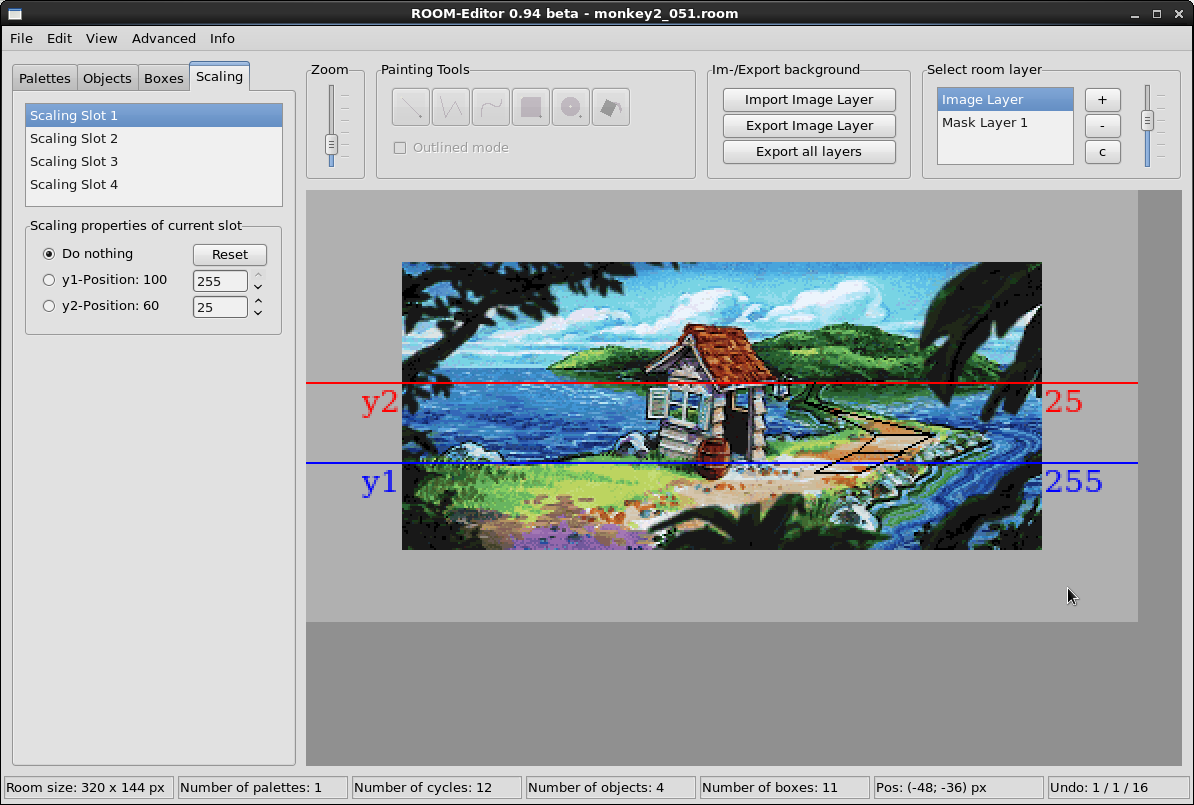

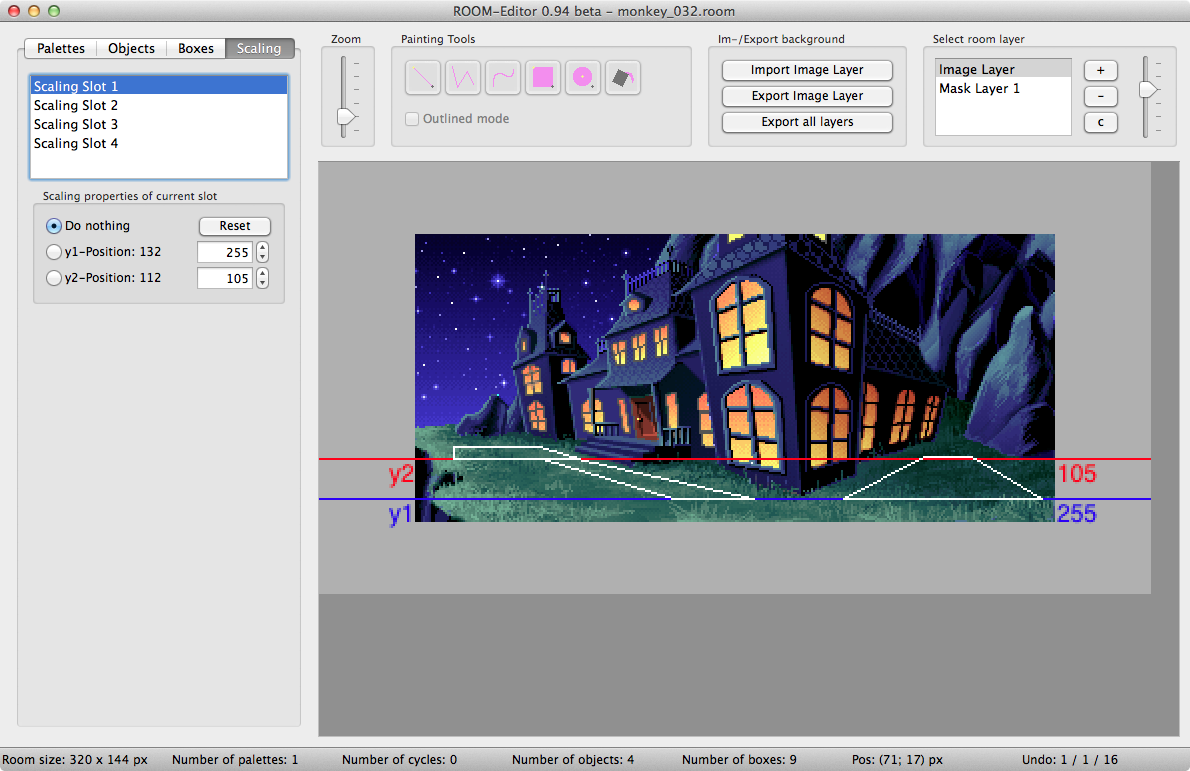

edit scaling properties
painting tools for editing walk-behind layers
full undo/redo system

Downloads:

	Download	Size	Screenshots
32-Bit	roomedit_v1.00_win32.zip	113 kB	[1] [2] [3] [4] [5]
64-Bit	roomedit_v1.00_macos.zip	173 kB	[1] [2] [3] [4]
64-Bit	roomedit_v1.00_linux.tar.gz	157 kB	[1] [2]

Attachments:

With this editor it is very easily to import rooms from LucasArts games. Choose File/Import... or press the keyboard shortcut [Ctrl]+[I] to open a LucasArts resource file (*.001 or *.LA1) and input a room number which should be imported. Supported games are:

Game	Source File *	Version
The Secret of Monkey Island (Enhanced)	MONKEY.001	SCUMM 5
Monkey Island 2: LeChuck's Revenge	MONKEY2.001	SCUMM 5
Indiana Jones and the Fate of Atlantis	ATLANTIS.001	SCUMM 5
Day of the Tentacle	TENTACLE.001	SCUMM 6
Sam & Max Hit the Road	SAMNMAX.001	SCUMM 6
The Dig	DIG.LA1	SCUMM 7
Full Throttle	FT.LA1	SCUMM 7

* filename can depend from the local version
